0.13mm Black White Film Light Deprivation Greenhouse With Blackout System
  • 0.13mm Black White Film Light Deprivation Greenhouse With Blackout System
  • 0.13mm Black White Film Light Deprivation Greenhouse With Blackout System
  • 0.13mm Black White Film Light Deprivation Greenhouse With Blackout System
  • 0.13mm Black White Film Light Deprivation Greenhouse With Blackout System
  • 0.13mm Black White Film Light Deprivation Greenhouse With Blackout System
  • 0.13mm Black White Film Light Deprivation Greenhouse With Blackout System

0.13mm Black White Film Light Deprivation Greenhouse With Blackout System

Place of Origin China
Brand Name BAOLIDA
Certification ISO9001:2008
Model Number BAOLIDA-LIGHT DEP GREENHOUSE
Product Details
Features:
Easy To Install
Product Name:
Blackout Light Deprivation Greenhouse
Shading System:
External Shading System
Optional System:
Side Ventilation
Covering:
Black And White Film
Length:
10-100M
Span Width:
6-10m
Height:
2.8-3M
Material:
Hot Dip Galvanized Steel
Application:
Plants Cultivation
Highlight:

0.13mm Film Light Deprivation Greenhouse

,

0.13mm Film greenhouse with blackout system

,

0.13mm greenhouse with blackout system

Payment & Shipping Terms
Minimum Order Quantity
500 Square meters
Price
6-15 USD
Packaging Details
Wooden Case Packing
Delivery Time
15 work days
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
500000 square meters per month
Product Description

Cheap Black White Film Blackout Light Deprivation Greenhouse



Product Advantages

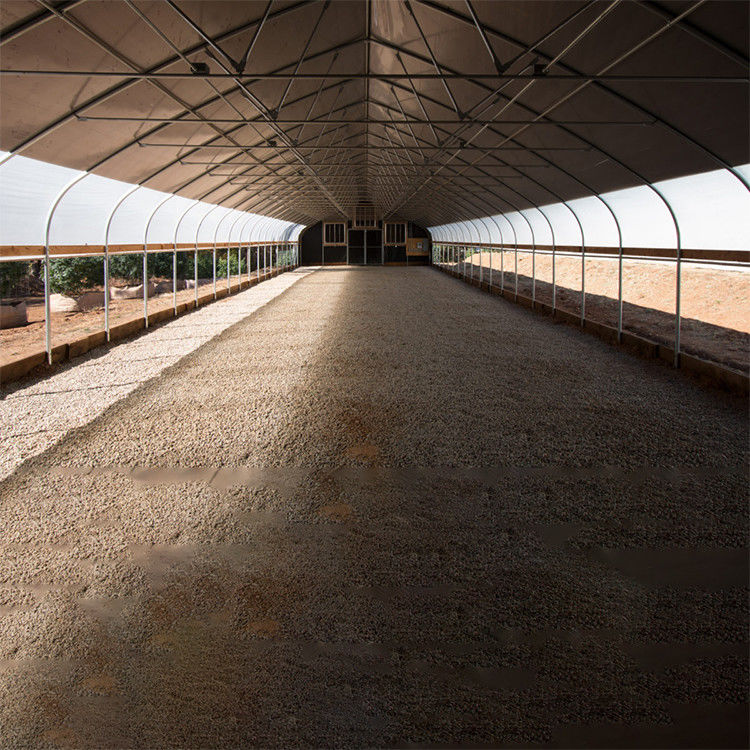

0.13mm Black White Film Light Deprivation Greenhouse With Blackout System 0



BAOLIDA LIGHT DEPRIVATION GREENHOUSE:



1. Low cost: The interior of the greenhouse is covered with transparent film, and the exterior is covered with black and white film. The cost is low and the practicability is strong, which is used for growing herb, mushroom and other

plants.



2.100% shading: the outer black and white film can achieve 100% shading effect. The light inside the greenhouse can be adjusted by rolling up or down the outer film.





3. Strength factory: Our factory has been specialized in manufacturing greenhouse for 15 years, exporting to North America, Europe, and other countries.









Blackout System


0.13mm Black White Film Light Deprivation Greenhouse With Blackout System 1

This greenhouse is covered with double layer plastic, the black-white film outside, and transparent PE film inside. The electric film rolling system can automatically roll up and down the film, and adjust the brightness in the greenhouse.



Product Parameter




Name Specification Remarks
Length 105ft, 120ft, 131ft, 144ft All greenhouse structures and control systems can be customized according to your requirements.
Width 30ft, 35ft, 40ft, 42ft, 45ft
Wind Load ≤0.45KN/m²
Snow Load ≤0.25KN/m²
Load Parameter 15KG/m²
Control System Automatic Control System for Light Deprivation;
Cooling Fan&Pad. Top Ventilation;
Temperature/Humidity/Light Control System;
220v, 230v, 380v, ph1, ph3, 50Hz, 60Hz Available.
Optional System Side/Top Ventilation;
Lighting System;Cooling/Heating/Dehumidifier System;Drip/Micro Irrigation System;
Ebb&Flow Hydroponic Rolling Bench.





Product Details


0.13mm Black White Film Light Deprivation Greenhouse With Blackout System 2



1.Galvanized Steel Pipes

High quality hot-dip galvanized steel structure, Zinc-coating 275 g/m2, service life over 20 years.

All steel materials are field-assembled, no secondary processing required.

The galvanized connectors and fasteners are not rusted for 20 years.







2.PE Film

Mechanical behavior Details Test method
Tensile strength at break (PMa) Longitudinal: 33 Transverse: 35 ASTM D882
Elongation at break% Longitudinal: 600 Transverse: 650 ASTM D882
Tearing strength (Gf/Micr) 15 ASTM D1922
Impact strength (g): 1000 1000 ASTM D1709
Optical performance: (internal standard) Total light transmittance: ≥91
  Refraction light: ≤20

0.13mm Black White Film Light Deprivation Greenhouse With Blackout System 3



3. Black and White Film

Thickness:0.13mm

Shading rate:100% shading

Tensile Strength(Vertical and horizontal):35MPa/35MPa

Elongation at break(Vertical and horizontal):800%/1000%

Right angle tear strength(Vertical and horizontal):100kN/m/110kN/m

Scope of application: herb/mushroom/Animal husbandry

Warranty:5 years











0.13mm Black White Film Light Deprivation Greenhouse With Blackout System 4



4. Side Ventilation

This greenhouse is covered with plastic film and two ventilation systems on both sides with insect nets. The manual film roller can control the upper and lower film coiling, realize ventilation and adjust the temperature in the greenhouse, which can provide a suitable growing environmentfor crops, such as herb, mushrooms, and medical plants.





0.13mm Black White Film Light Deprivation Greenhouse With Blackout System 5







5.Top Ventilation Roller

The top is equipped with 220V, 100W electric film roller, which can roll up or put down the black and white film on the su

rface to achieve the shading effect of the greenhouse.(The side roller also can be electric).







Optional System


LED Grow Light

Passive heat sinking, no fans, no noise.

Waterproof, Can be used more widely than other common led grow lights.

With Samsung LM301H, newest and best led chip for growing.

Foldable, you can choose any angle you like.

With 0-10V dimmer, can make daisy chain for the dimming.



0.13mm Black White Film Light Deprivation Greenhouse With Blackout System 6

0.13mm Black White Film Light Deprivation Greenhouse With Blackout System 7



Cooling system: Exhaust Fan

Frame size: 1380*1380*400 mm

Voltage: 220V,50 HZ 1.1 kw,three phase/double phase/single phase ,custoner have to confirm your local voltage

Fan parameters:

Wind capacity: 48800 m²/h

Blade size: 710 mm

Blade speed: 440 r/min

Motor speed: 1250 r/min

Air quantity: 760 m³/min

Noise: <65 dB













0.13mm Black White Film Light Deprivation Greenhouse With Blackout System 8





Cooling System: Cooling Pad

size:1.5m*3m

The water inlet adopts φ50PVC water pipe, and the outlet pipe adopts: φ110

With independent control water pump 220v*1.5-5 KW

Supporting cooling water supply and return system

Parameters:

Component: Inside pipe, Water pump

 380V/220V,three phase/double phase/single phase, 3kw 50HZ

Height/H: 1500 mm

Width/W:3000 mm

Thickness: 100mm

With aluminuim frame

Angle corrugation α(°): 45°

Angle corrugation β(°): 45°







0.13mm Black White Film Light Deprivation Greenhouse With Blackout System 9

Indoor circulating fan

Frame size: 480*480*260 mm

Total pressure: 60 pa

Wind capacity: 5500 m³/h

Effective distance: 16-21 m

Output Power: 120 W

Voltage: 220V,50 HZ 1.2kw,three phase/double phase/single phase ,custoner have to confirm your local voltage
