Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed
  • Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed
  • Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed
  • Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed
  • Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed
  • Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed

Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed

Place of Origin China
Brand Name BAOLIDA
Certification ISO9001:2008
Model Number BAOLIDA-Automatic Blackout Greenhouse
Product Details
Features:
Automatic Control System/Monitoring System
Product Name:
Automatic Blackout Greenhouse
Shading System:
Outside Black And White Film
Optional System:
LED Grow Light/Cooling System/Cultivation System
Covering:
Black And White Film/Transparent PE Film
Length:
30-60m
Width:
8-9m
Height:
2.8-5m
Material:
Hot Dip Galvanized Steel
Application:
Medical Plants Growing
High Light:

Breathable Curtain auto light deprivation greenhouse

,

Movable seeding bed auto light deprivation greenhouse

,

Breathable Curtain auto light deprivation

Payment & Shipping Terms
Minimum Order Quantity
500 Square meters
Price
20-35 USD
Packaging Details
Wooden Case Packing
Delivery Time
15 work days
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
500000 square meters per month
Product Description

Woven Blackout Plastic Greenhouse Breathable Curtain Small Full Auto Light Dep Greenhouse With Rolling Blackout


Product Advantages


Light Deprivation Greenhouse With Blackout Curtain


1. Adjustable light and temperature: Transmission shady greenhouses are usually equipped with an automatic control system, which can adjust the light and temperature in the greenhouse to meet the growth needs of different plants.

2.100% shading system: the black-out shading system can be controlled by the motor to realize the opening and closing of the curtain, which can completely block the external light, and flexibly adjust the light intensity and temperature in the greenhouse to achieve an environment suitable for herbs growth





Blackout System


The switch of the black curtain is driven by a motor to rotate the transmission shaft, and the motor is placed in the middle of the top of our black curtain greenhouse. After the rotation of the transmission shaft, push the net pushing rod back and forth, so as to achieve the effect of opening and closing the black curtain. We can clearly see that our black curtain system has 6 net push rods, which can easily and accurately push our black curtain. The seemingly complex transmission can be operated by one key only through our control box.
Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed 0
Product Parameter



No Items Description Including Or Not
1 Steel Structure Hot-galvanized steel pipe Yes
2 Greenhouse film There's a lot of thickness to choose from Yes
3 Insect net High-quality polyethylene as raw material Yes
4 Cooling system It consists of cooling fans and a cooling pad Yes
5 Film-rolling system Electrodynamic type,chain type,manual type Yes
6 Ventilation system Side windows and circulation fans Yes
7 Heating system Hot water heating, hot air heating, electric heating Optional
8 Drip irrigation system It can be customized according to the greenhouse length and width Optional
9 Micro-sprinkler system It can be customized according to the greenhouse length and width Optional
10 Fill in light Easy assemble auto light deprivation blackout greenhouse Optional
11 Seedling bed Movable seeding bed Optional
12 Hydroponics It can be reused, no need to add nutrients, convenient and affordable. Optional

Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed 1
Product Details


Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed 2

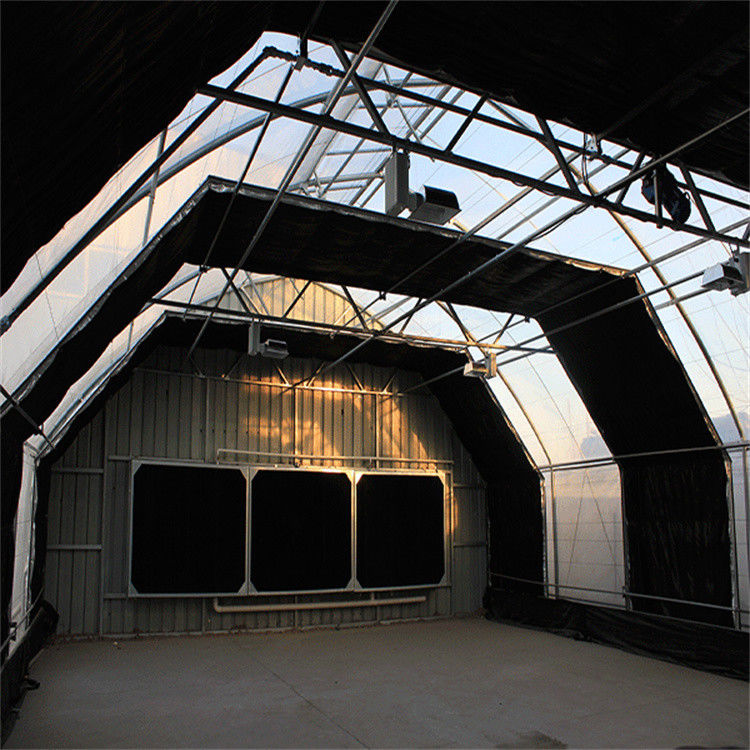

The light dep system of the blackout greenhouse is the core component of our product and one of the selling points of our product. It is mainly designed according to the demand characteristics of marijuana for light. Our black curtain transmission system is composed of independent frame and 100% shading curtain. You can see that each curtain is supported by a metal frame, and is connected with the outer frame of our greenhouse at the top and bottom, so as to achieve the fixed function. It is composed of multi-layer, thick and 100% shading. In order to prevent light leakage, a layer of black-and-white film is also installed at the bottom of our curtain.



The greenhouse black curtain, also known as a light deprivation curtain, is a specialized type of curtain that is used to block out light from entering the greenhouse during certain periods of the day. This technique is commonly used in the cultivation of light-sensitive plants such as herbs, where it is necessary to control the amount of light that the plants receive in order to induce flowering.The curtain is typically operated using a motorized system that can be programmed to open and close the curtain at specific times of the day. This allows growers to control the amount of light that the plants receive, which can be critical for inducing flowering.



Cooling System

The negative pressure fan is typically installed at one end of the greenhouse. It works by pulling air out of the greenhouse, creating a negative pressure inside the greenhouse. This negative pressure causes air to flow in through openings on the other end of the greenhouse.
The wet curtain is usually installed on the opposite end of the greenhouse from the negative pressure fan. It is made of a material that can absorb water, such as cellulose or fiber. The wet curtain is kept wet using a drip irrigation system, and as the air flows through it, the water evaporates, cooling and humidifying the air.


Optional Covering Material


Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed 3



Greenhouse polycarbonate board made of polymer polycarbonate material, has good impact resistance, anti-aging, anti-UV and other properties, long service life, not easy to crack and deformation. Light density, light weight, convenient transportation and installation.



Greenhouse color steel plate is made of high strength steel plate, with good wind, rain, snow and other capabilities, can maintain stable performance in harsh climatic conditions. It has good thermal insulation performance, which can effectively prevent the heat loss inside the greenhouse and keep the temperature stable inside the greenhouse. Can be customized according to the need of different shapes and colors, with good decorative effect, can increase the beauty of the greenhouse and added value.



Greenhouse glass panels usually uses toughened glass, thickness of 4mm, 5mm, 6mm, 8mm, 10mm, etc., different thickness of glass transmittance, insulation performance, strength and other parameters are different. Greenhouse glass has good stability, not easy to deformation, discoloration and aging, long service life.



Optional System




LED Grow Light
Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed 4
Baolida light bulbs are all Samsung brand quality light bulbs, the use effect is good. The brightness can be adjusted by one key to meet the lighting conditions of herbs growth in different periods. LED grow lights are highly energy efficient, using up to 50% less energy than traditional lighting sources. This can result in significant cost savings on electricity bills over time. At the same time, we have different kinds of growth lights to meet your different needs.


Greenhouse Project

Breathable Curtain Auto Light Deprivation Greenhouse With Movable Seeding Bed 5

Greenhouse materials and ancillary equipment can be customized to provide a complete set of greenhouse programs! Please contact us for details!
